SHAPEMASTER SOFTWARE

Aluminum composite material (ACM) panel design and manufacturing software

SHAPEMASTER SOFTWARE

Aluminum composite material (ACM) panel design and manufacturing software

Would you like a Personalized Demonstration?

Would you like a
Personalized Demonstration?

REQUEST YOUR PERSONALIZED DEMO
ShapeMaster Designs

Easily Create New Designs

Create your own ACM panel shapes in ShapeMaster Software’s very simple-to-use interface.

You can quickly create panel designs and control them parametrically. And you can even save to your design to your library for later use or as a template for a new design.

This option is available in ShapeMaster Software.

Detailed Job Reports

Standard reports for production and purchasing are included in ShapeMaster Software.

Everything from a cut list of all required “Angle Brackets” per job, to a Job List report with each part’s dimensions and images.

ShapeMaster’s reports are easy to generate, and can also include quotation pricing.

This option is available in ShapeMaster Software.

ShapeMaster Report
ShapeMaster Fold Image

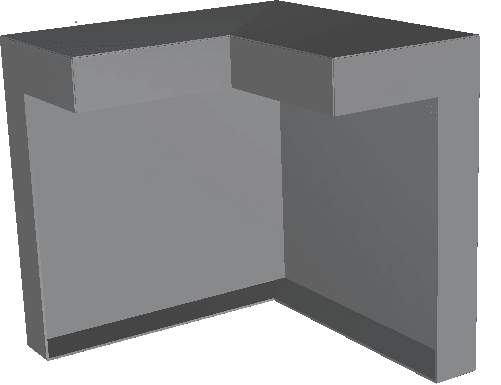

Fold in 3D for Visualization

With ShapeMaster Software, you can create your ACM panel designs and then virtually fold them in a 3D rendered view.

This rendered view is key to being able to actually see any folding issues prior to manufacturing.

Don’t try to visualise your finished product in your head – see it fold with ShapeMaster Software.

This option is available in ShapeMaster Software.

Integrated Nesting

ShapeMaster Software can be integrated with EzyNest / EnRoute.

This pairing allows you to process and nest parts for manufacturing with one click.

With integrated nesting, you can also select your required sheet size and tooling setup prior to processing.

This option requires EzyNest or EnRoute for integration.

ShapeMaster Integrated Nesting

ShapeMaster Demo Video

So how does ShapeMaster work?

Here you can find a demonstration video showcasing the easy design and manufacturing of ACM panels with ShapeMaster Software.

Don’t just imagine – find out how ShapeMaster Software can maximize production for your business!

Want more info on ShapeMaster Software?

Want more info on ShapeMaster Software?

Request more info
Request more info

ShapeMaster Software

  • Simple to use, easy to learn

  • Extensive library of shapes

  • Scale shapes parametrically

  • Save shapes for later re-use

  • Control length, witdth and angle of tabs

  • View shapes as a 3D render

  • Detailed job reporting

  • Generate layered DXF files per shape

  • Machine view – integrated nesting

  • Part labelling

  • Link to any CNC machine

US$149monthly
  • Cancel anytime!
  • Creates a DXF file per part
  • Includes 4 hours training
  • One-off Setup fee US$400

ShapeMaster + EzyNest

  • Simple to use, easy to learn

  • Extensive library of shapes

  • Scale shapes parametrically

  • Save shapes for later re-use

  • Control length, witdth and angle of tabs

  • View shapes as a 3D render

  • Detailed job reporting

  • Generate layered DXF files per shape

  • Machine view – integrated nesting

  • Part labelling

  • Link to any CNC machine

US$199monthly
  • Cancel anytime!
  • Creates a DXF file per part
  • Includes 4 hours + CNC link
  • One-off Setup fee US$995
Sign Up Now
Engineering Products Brochure 2020

Would you like a brochure?

Please fill in the form below to receive an instant email with our latest product brochure.

    First Name:

    Last Name:

    State:

    Company:

    Email:

    Country:



    System Requirements

    Minimum Specifications

    • i5 Processor
    • Windows 10 Operating System
    • 8 Gig Of Ram
    • 5 Gb Free Hard Disk Space
    • Full Open GL Support Video Card

    Recommended Specifications

    • i7 Processor
    • Windows 10 Operating System
    • 16 Gig Of Ram Or More
    • 1 Tb Free Hard Disk Space
    • nVidia or AMD Video Card

    Note: We use nVidia Cards with our testing.
